SQ6 Vinstax: Instax Square back for Hasselblad V series

from $799.99
Sold Out

COMPATIBILITY:

Compatible with Hasselblad 500CM 501C 503CW 503CXI 201F 202FA 203FE 205FCC 205TCC 2000Fc and any other Hasselblad from the V series that allow you to remove your focusing screen.

DESCRIPTION:

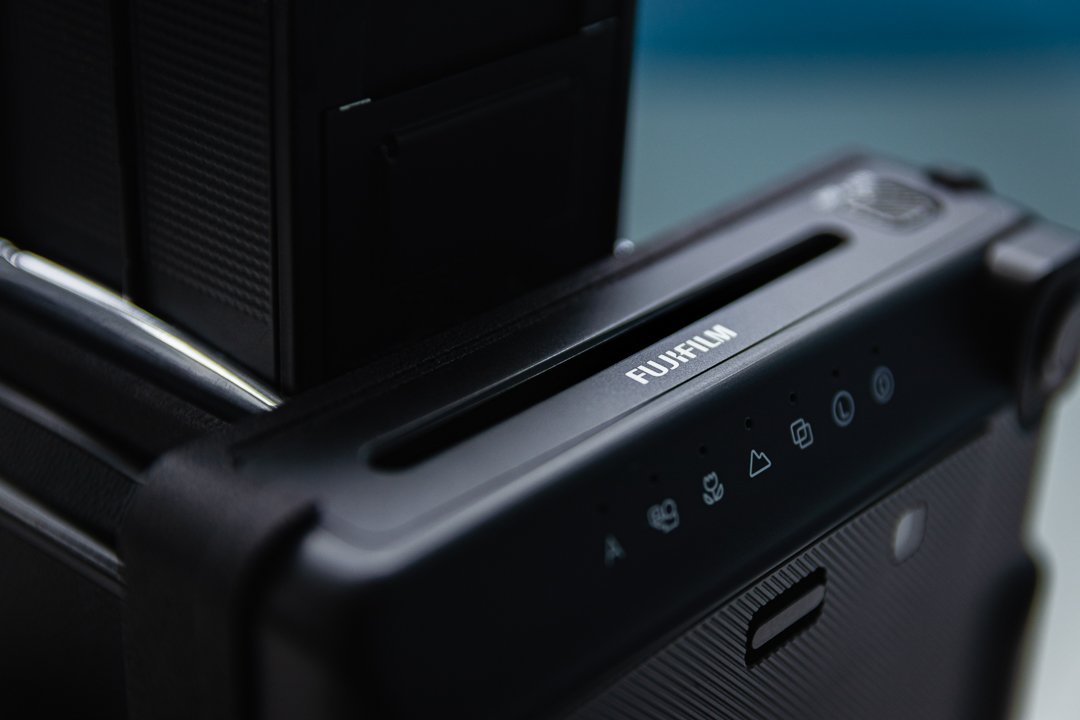

The main part of the Vinstax is made of the Fujifilm Instax Square SQ6.

The part facing the Hasselblad body contains two sections:

  • The outer section is made of high-performance nylon, which helps prevent the Hasselblad’s body paint from wearing out over time.

  • The inner section contains a CNC steel plate.

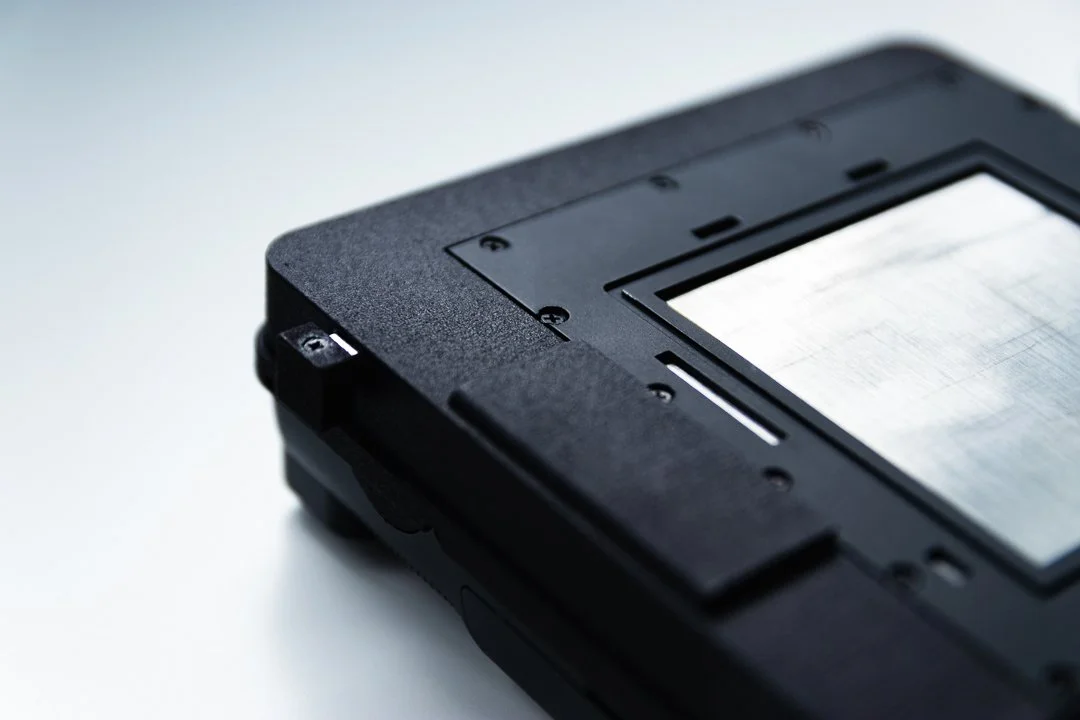

On the sides, you can find the release knob made of CNC steel, and the Darkslide insertion slot.

The Vinstax back can be attached and used without causing damage to the Hasselblad’s body and focusing system.

Two CR2 batteries are required for powering up the Vinstax.

The color of the back’s button may vary.

For more details, please check the images below.

FEATURES:

  • Automatic image development

  • Automatic frame counter

  • Presence of a Darkslide to avoid exposing the rest of the images when taking off the back.

  • No presence of black edges after exposing your images. The whole frame is accurately exposed!

  • Able to focus on both infinity & close up distance. (only applicable for lenses with a focal length > 80mm)

COMPLETE PACKAGE:

  • Instax Square Film Back with Darkslide

  • 3D printed Viewfinder attachment

  • Step-up ring B50 - 67mm

  • Step-up ring B60 - 67mm

  • 2 x 67mm Filters for close-up & infinity focusing designed for your specific lenses’ focal lengths.
    For any additional filters, an extra $25/filter is needed.

MANUFACTURING & DELIVERY TIMES:

Production will take 7 days.

Shipping will be handled by DHL or Fedex & take between 4 to 10 days.

This accounts for a total of 2 to 3 weeks after placing your order.

We are not responsible for the customs fees, they are the responsibility of the Buyer.

WARRANTY:

1-year warranty after your purchase.

DISCLAIMER:

This back was optimized to be shot with the Carl Zeiss 80mm lens.
If you wish to use any focal length <80mm, you won’t be able to get properly focused images unless you want to do macro.
For instance, with the 50mm you would need to get up close to 10cm.

Any other lenses above 80mm work fine with the back!

The 250mm focus works properly however there will be the presence of tiny black lines on the top & left side of the Instax due to the length of the lens.

The 500mm unfortunately doesn’t work with this back due to the size of the front panel making it unable to use a filter on it.

Further lens tests will be done in the future:

Number of Lens Filters:
Instax Model:
Add to Cart

COMPATIBILITY:

Compatible with Hasselblad 500CM 501C 503CW 503CXI 201F 202FA 203FE 205FCC 205TCC 2000Fc and any other Hasselblad from the V series that allow you to remove your focusing screen.

DESCRIPTION:

The main part of the Vinstax is made of the Fujifilm Instax Square SQ6.

The part facing the Hasselblad body contains two sections:

  • The outer section is made of high-performance nylon, which helps prevent the Hasselblad’s body paint from wearing out over time.

  • The inner section contains a CNC steel plate.

On the sides, you can find the release knob made of CNC steel, and the Darkslide insertion slot.

The Vinstax back can be attached and used without causing damage to the Hasselblad’s body and focusing system.

Two CR2 batteries are required for powering up the Vinstax.

The color of the back’s button may vary.

For more details, please check the images below.

FEATURES:

  • Automatic image development

  • Automatic frame counter

  • Presence of a Darkslide to avoid exposing the rest of the images when taking off the back.

  • No presence of black edges after exposing your images. The whole frame is accurately exposed!

  • Able to focus on both infinity & close up distance. (only applicable for lenses with a focal length > 80mm)

COMPLETE PACKAGE:

  • Instax Square Film Back with Darkslide

  • 3D printed Viewfinder attachment

  • Step-up ring B50 - 67mm

  • Step-up ring B60 - 67mm

  • 2 x 67mm Filters for close-up & infinity focusing designed for your specific lenses’ focal lengths.
    For any additional filters, an extra $25/filter is needed.

MANUFACTURING & DELIVERY TIMES:

Production will take 7 days.

Shipping will be handled by DHL or Fedex & take between 4 to 10 days.

This accounts for a total of 2 to 3 weeks after placing your order.

We are not responsible for the customs fees, they are the responsibility of the Buyer.

WARRANTY:

1-year warranty after your purchase.

DISCLAIMER:

This back was optimized to be shot with the Carl Zeiss 80mm lens.
If you wish to use any focal length <80mm, you won’t be able to get properly focused images unless you want to do macro.
For instance, with the 50mm you would need to get up close to 10cm.

Any other lenses above 80mm work fine with the back!

The 250mm focus works properly however there will be the presence of tiny black lines on the top & left side of the Instax due to the length of the lens.

The 500mm unfortunately doesn’t work with this back due to the size of the front panel making it unable to use a filter on it.

Further lens tests will be done in the future:

COMPATIBILITY:

Compatible with Hasselblad 500CM 501C 503CW 503CXI 201F 202FA 203FE 205FCC 205TCC 2000Fc and any other Hasselblad from the V series that allow you to remove your focusing screen.

DESCRIPTION:

The main part of the Vinstax is made of the Fujifilm Instax Square SQ6.

The part facing the Hasselblad body contains two sections:

  • The outer section is made of high-performance nylon, which helps prevent the Hasselblad’s body paint from wearing out over time.

  • The inner section contains a CNC steel plate.

On the sides, you can find the release knob made of CNC steel, and the Darkslide insertion slot.

The Vinstax back can be attached and used without causing damage to the Hasselblad’s body and focusing system.

Two CR2 batteries are required for powering up the Vinstax.

The color of the back’s button may vary.

For more details, please check the images below.

FEATURES:

  • Automatic image development

  • Automatic frame counter

  • Presence of a Darkslide to avoid exposing the rest of the images when taking off the back.

  • No presence of black edges after exposing your images. The whole frame is accurately exposed!

  • Able to focus on both infinity & close up distance. (only applicable for lenses with a focal length > 80mm)

COMPLETE PACKAGE:

  • Instax Square Film Back with Darkslide

  • 3D printed Viewfinder attachment

  • Step-up ring B50 - 67mm

  • Step-up ring B60 - 67mm

  • 2 x 67mm Filters for close-up & infinity focusing designed for your specific lenses’ focal lengths.
    For any additional filters, an extra $25/filter is needed.

MANUFACTURING & DELIVERY TIMES:

Production will take 7 days.

Shipping will be handled by DHL or Fedex & take between 4 to 10 days.

This accounts for a total of 2 to 3 weeks after placing your order.

We are not responsible for the customs fees, they are the responsibility of the Buyer.

WARRANTY:

1-year warranty after your purchase.

DISCLAIMER:

This back was optimized to be shot with the Carl Zeiss 80mm lens.
If you wish to use any focal length <80mm, you won’t be able to get properly focused images unless you want to do macro.
For instance, with the 50mm you would need to get up close to 10cm.

Any other lenses above 80mm work fine with the back!

The 250mm focus works properly however there will be the presence of tiny black lines on the top & left side of the Instax due to the length of the lens.

The 500mm unfortunately doesn’t work with this back due to the size of the front panel making it unable to use a filter on it.

Further lens tests will be done in the future:

VIDEO TUTORIAL:
How to install your Vinstax, Instax Square Back on your Hasselblad V series.



VINSTAX COMPLETE PACKAGE.

1. 3D printed Viewfinder attachment.
DISCLAIMER:
The focusing screen shown in the images is not included with this purchase!

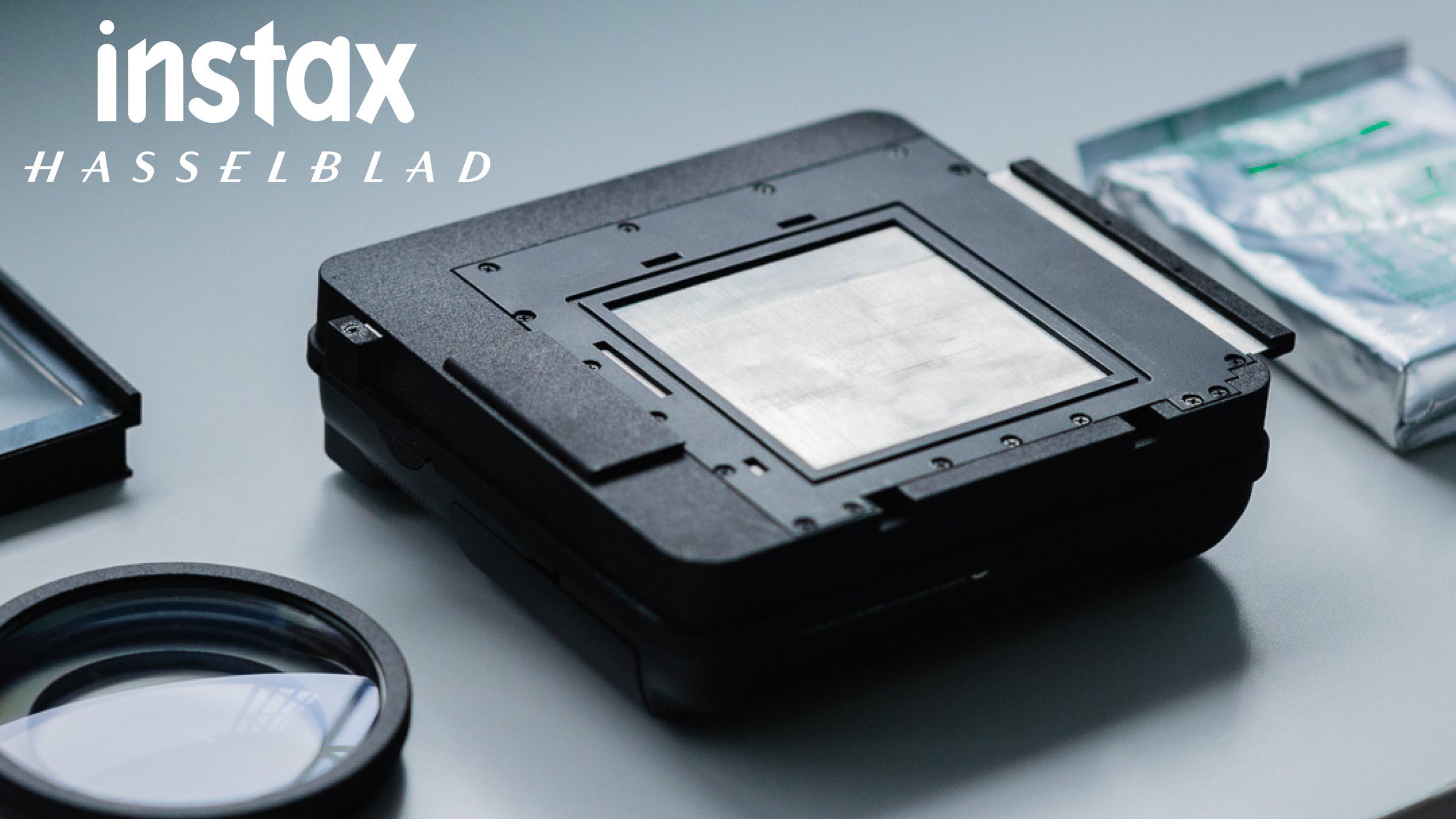

2. Instax Back + Darkslide
DISCLAIMER:
The Instax square pack shown in the images is not included with this purchase!

3. Lens attachment for Close up focusing.
Close up filter + Step-up rings B60
(as shown in photos) & B50



Instax Square Back Details

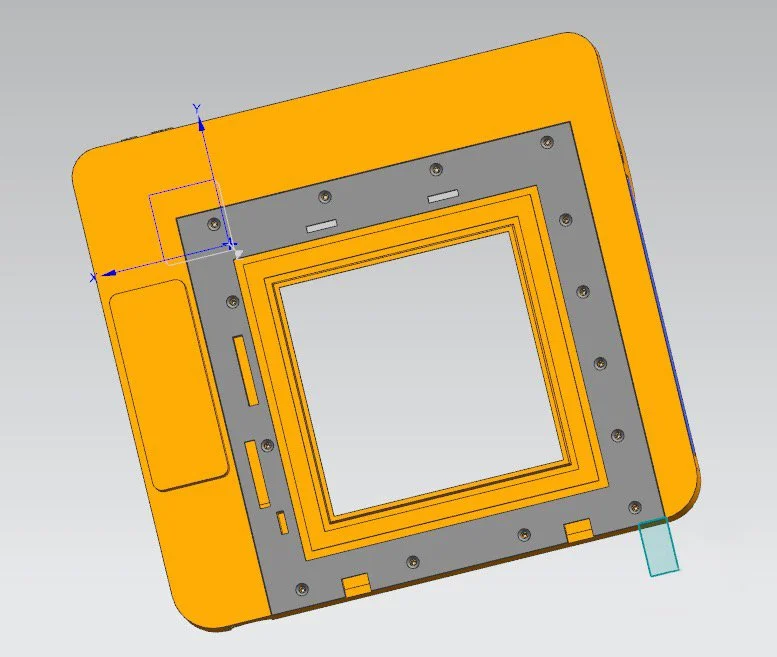

Rendered model of the Vinstax 3D designed parts.

3D model of the front view of the Hasselblad Instax Square Back

Front view of the Vinstax.

3D model of the inside of the Hasselblad Instax Square Back

Inside of the Vinstax.

3D model of the 3D printed viewfinder attachment for the Hasselblad Instax Square Back

Viewfinder & Focusing Screen holder.

Darkslide 3D model for the Hasselblad Instax Square Back

Darkslide
